Package empro :: Module empro :: Module geometry :: Class Part

Class Part

core.Updatable --+
                 |
   core.Selectable --+
                     |
     core.Attributable --+
                         |
                        Part

Known Subclasses:

Defines the role and operations of a participant of the feature based modeling architecture. This is an abstract class.

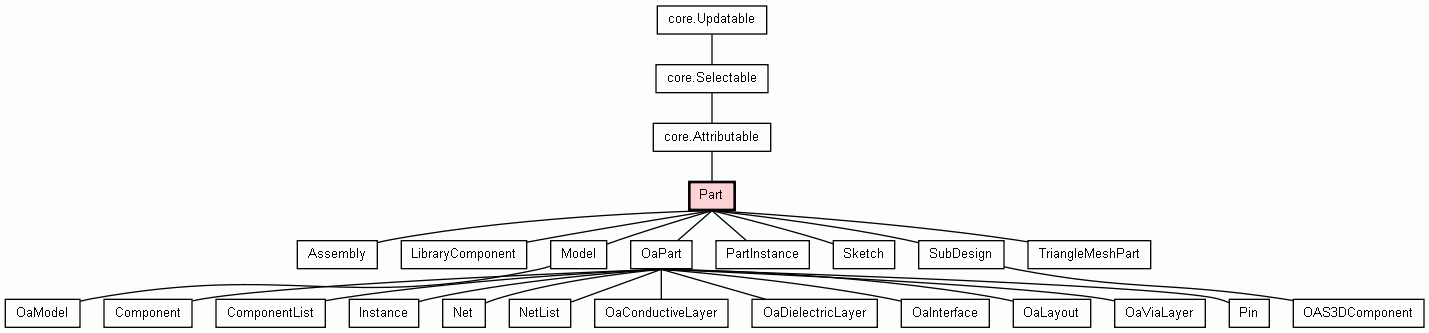

Class Hierarchy for Part

Instance Methods

int

age()
Returns the age of the part.

list(string)

badFaces()
Returns the list of bad faces of the part

BoundingBox3D

boundingBox()
Returns the bounding box of the part.

BoundingBox3D

centeredBoundingBox(iBoundingBoxOption)
Returns the centered bounding box of the part.

check(...)
No documentation available.

checkLumps(...)
No documentation available.

Part

cloneFlatten(iPart)
Returns the clone flatten part of the part specified.

exportFaceToSAT(...)
No documentation available.

None

exportToSAB(iFileName)
Export the part to an SAB file.

None

exportToSAT(iFileName)
Export the part to an SAT file.

faceCentroid(...)
No documentation available.

faceNormalAtCentroid(...)
No documentation available.

list(string)

faces()
Returns the list of faces of the part.

list

facetFaces()
Returns the list of facet faces from the part.

None

hide()
Makes the part hidden.

importCad(...)
No documentation available.

importCadWithUnits(...)
No documentation available.

inspectPart(...)
No documentation available.

SelectableList

locatorList()
Returns the locator list of the part.

project(...)
No documentation available.

serialize(...)
No documentation available.

serializeEx(...)
No documentation available.

None

show()
Makes the part visible.

slice(...)
No documentation available.

sliceLineFacets(...)
No documentation available.

touchGeometry(...)
No documentation available.

Inherited from core.Attributable: addAttribute, attributeNames, getAttribute, removeAttribute, setAttribute

Inherited from core.Selectable: clone, isSelected

Inherited from core.Updatable: __enter__, __exit__, hash, isValid, reasonWhyInvalid

Properties
BodyAppearanceNone	appearance The part's appearance.
stringNone	cadId An id that can be assigned to this part, uniqueness is not enforced.
CoordinateSystemNone	coordinateSystem The part's coordinate system.
PartGridParametersNone	gridParameters The part's grid parameters.
MaterialNone	material The material assigned to this part.
MeshParametersNone	meshParameters The part's mesh parameters.
intNone	priority The part's mesh priority.
UnitNone	unit The part's unit.
boolNone	visible Determines whether the part is visible or not.
Inherited from `core.Selectable`: `metaData`, `name`, `notes`

Method Details

centeredBoundingBox(iBoundingBoxOption)

Returns the centered bounding box of the part.

Parameters:

iBoundingBoxOption (string) - The bounding box option, can be one of (AccurateBoundingBox','FastBoundingBox').

Returns: BoundingBox3D

cloneFlatten(iPart)

Returns the clone flatten part of the part specified.

Parameters:

iPart (Part) - The part to be clone flatten.

Returns: Part

exportToSAB(iFileName)

Export the part to an SAB file.

Parameters:

iFileName (string) - The name of the SAB file to export to.

Returns: None

exportToSAT(iFileName)

Export the part to an SAT file.

Parameters:

iFileName (string) - The name of the SAT file to export to.

Returns: None
